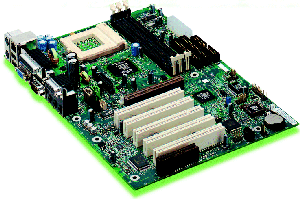

 :: Intel D815EEA Motherboard
  Intel Express Bios Update
This is yet another Intel exclusive that is available on the CA815EEA motherboard. Unlike with regular motherboards, in order to update the bios you would have to do the following steps.

Download the new image.
Create a bootable floppy
Copy the image to the bootable floppy
Reboot

Now, with the Intel Express Bios Update, it is possible to do the same procedure in essentially three steps and in far less time.

Download the InstallShield Program
Execute it in Windows
Reboot

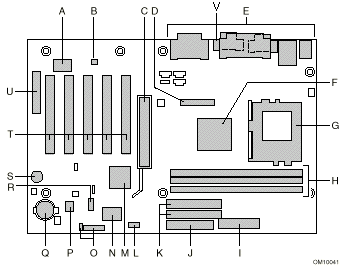

Motherboard Closer Look



A - Creative Labs ES1373 Digital Controller (optional)
B - AD1885 Audio Codec (optional)
C - AGP Slot
D - DVO Connector
E - Rear Panel Connectors
F - Intel 82815E Graphics and Memory Controller Hub
G - Processor Socket
H - 3 DIMM Sockets
I - Power Connector
J - Diskette Drive Connector
K - IDE Connectors
L - Serial Port B Connector
M - Intel 82801BA I/O Controller Hub
N - SMSC LPC47M102 I/O Controller
O - Front Panel Connectors
P - Intel 82802AB 4 Mbit Firmware Hub
Q - Battery
R - Front Panel USB Connector
S - Speaker
T - PCI Bus add-in card connectors
U - Communication and Networking Riser connector (optional)
V - Diagnostic LEDs

Installation
